【Unity3D】UI Toolkit样式选择器
来源:cnblogs  作者:little_fat_sheep  时间:2023/10/20 8:45:23  对本文有异议

1 前言

? UI Toolkit简介 中介绍了样式属性,UI Toolkit容器UI Toolkit元素 中介绍了容器和元素,本文将介绍样式选择器(Selector),主要包含样式类选择器(Class Selector)、C# 类选择器(Type Selector)、名称选择器(Name Selector)、通用选择器(Universal Selector)、后代选择器(Descendant Selector)、子选择器(Child Selector)、多重选择器(Multiple Selector)、伪类选择器(Pseudo Class)等。样式选择器官方介绍见→USS selectors

2 简单选择器(Simple Selector)

? 简单选择器优先级:

  1. // * < C# Type < .Name < #Name
  2. // 通用选择器 < C#类选择器 < 样式类选择器 < 名称选择器
  3. Universal Selector < Type Selector < Class Selector < Name Selector

2.1 样式类选择器(Class Selector)

? Class 选择器是命名以 "." 号开头的选择器(如:.red、.abc、.xyz 等),需要手动绑定到元素上,官方介绍见→Class selectors

? 1)创建 UI

? 在 UI Builder 的 Hierarchy 窗口中创建 UI 如下。


? 显示如下。


? 2)创建 USS 文件

? 在 StyleSheets 窗口点击 "+" 号,选择 Create New USS 选项,如下。选择 USS 文件保存路径,命名为 StyleSelectorDemo。


? 3)创建选择器

? 在 StyleSheets 窗口的 selector 框中输入 ".textColor",如下。注意:textColor 前面有个点,命名可以随意,如:demo、test 等都行。


? 按 Enter 键后,创建了 selector,如下。


? 4)修改选择器的属性

? 选中 ".textColor" 选择器,在 Inspector 窗口修改文本颜色,如下。


? 5)绑定选择器到元素

? 将 ".textColor" 选择器拖拽到 Hierarchy 或 Viewport 窗口中相关元素上,实现样式选择器与元素的绑定。


? 也可以通过以下方式绑定元素:选中元素后,在 Inspector 窗口的 Style Class List 中添加 selector,如下。


? 选择器绑定到元素后,在 Inspector 窗口可以看到元素绑定的选择器,如下。可以通过后面的 "x" 号删除选择器。


? 6)显示效果

? Label 和 Button 都手动绑定了 ".textColor" 选择器,显示效果如下。


2.2 C# 类选择器(Type Selector)

? Type 选择器是以元素的 C# 类名命名的选择器(如:Label、Button、VisualElement 等),会自动绑定到对应 Type 的元素上,不需要手动绑定,官方介绍见→Type selectors

? 1)创建选择器

? 在 StyleSheets 窗口创建名为 "Label" 的选择器,如下。


? 2)修改选择器的属性

? 选中 "Label" 选择器,在 Inspector 窗口修改文本样式为斜体,如下。


? 3)显示效果

? Label 元素会自动绑定 "Label" 选择器,Button 元素则不会,即使手动将 "Label" 选择器拖拽到 Button 元素上,也不会绑定成功。显示效果如下。


2.3 名称选择器(Name Selector)

? Name 选择器是命名以 "#" 号开头的选择器(如:#Name、#Abc、#Xyz 等),会自动绑定到对应 Name 的元素上,不需要手动绑定,官方介绍见→Name selectors

? 1)修改元素名

? 新创建的元素默认元素名为空,修改元素名如下。


? 2)创建选择器

? 在 StyleSheets 窗口创建名为 "Button1" 的选择器,如下。


? 3)修改选择器的属性

? 选中 "Button1" 选择器,在 Inspector 窗口修改背景颜色,如下。


? 4)显示效果

? Button1 元素会自动绑定 "Button1" 选择器,Label1 元素则不会,即使手动将 "Button1" 选择器拖拽到 Label1 元素上,也不会绑定成功。显示效果如下。


2.4 通用选择器(Universal Selector)

? Universal 选择器是以 "*" 号命名的选择器,会自动绑定到所有元素上,不需要手动绑定,官方介绍见→Universal selectors

? 1)创建选择器

? 在 StyleSheets 窗口创建名为 "*" 的选择器,如下。


? 2)修改选择器的属性

? 选中 "*" 选择器,在 Inspector 窗口修改边框宽度和颜色,如下。


? 3)显示效果

? 所有元素都会自动绑定 "*" 选择器,显示效果如下。


3 复杂选择器(Complex Selector)

? 复杂选择器是指由多个简单选择器按照特定规则组合而成的选择器。

3.1 后代选择器(Descendant Selector)

? Descendant 选择器由多个简单选择器通过空格连接而成,它匹配的是某个 UI 元素底下符合规则的所有层级的子元素,官方介绍见→Descendant selectors

  1. // 在selector1匹配的子元素中匹配selector2, ...
  2. // 选择器的顺序不同匹配的元素也不同
  3. selector1 selector2 {...}

? 1)UI 搭建

? UI 层级结构如下,其中 Background、VE1、VE2、VE3 都是 VisualElement,Label1、Label2、Label3 都是 Label。


? 创建以下简单选择器。其中,Lable 选择器中修改了字体大小为 30;.red 选择器中修改了背景颜色为红色,并绑定到 VE1,.green 选择器中修改了背景颜色为绿色,并绑定到 VE2;.blue 选择器中修改了背景颜色为蓝色,并绑定到 VE3。


? UI 显示如下。


? 2)创建 Descendant 选择器

? 在 StyleSheets 窗口创建以下选择器。

  • "#VE1 Label" 选择器:修改字体为斜体;
  • ".green Label" 选择器:修改字体颜色为黑色;
  • "#Background *" 选择器:设置 3px 的黄色边框。


? 3)显示效果


? 可以看到,"#VE1 Label" 选择器匹配的是 Label1 元素,".green Label" 选择器匹配的是 Label2 元素,"#Background *" 选择器匹配的是 VE1、VE2、VE3、Label1、Label2、Label3 元素。

3.2 子选择器(Child Selector)

? Child 选择器由多个简单选择器通过 " > " 连接而成,它匹配的是某个 UI 元素底下符合规则的第一层级的子元素,官方介绍见→Child selectors

  1. // 在selector1匹配的子元素中匹配selector2, ...
  2. // 选择器的顺序不同匹配的元素也不同
  3. selector1 > selector2 {...}

? 1)UI 搭建

? 同 3.1 1)节。

? 2)创建 Child 选择器

? 在 StyleSheets 窗口创建以下选择器。

  • "#VE1 > Label" 选择器:修改字体为斜体;
  • ".green > Label" 选择器:修改字体颜色为黑色;
  • "#Background > *" 选择器:设置 3px 的黄色边框。


? 3)显示效果


? 可以看到,"#VE1 > Label" 选择器匹配的是 Label1 元素,".green > Label" 选择器匹配的是 Label2 元素,"#Background > *" 选择器匹配的是 VE1、VE2、VE3 元素。

3.3 多重选择器(Multiple Selector)

? Multiple 选择器由多个简单选择器直接而成,它匹配的是符合所有规则的元素,官方介绍见→Multiple selectors

  1. // 匹配同时满足selector1、selector2、...的元素
  2. // 选择器的顺序不同匹配的元素相同
  3. selector1selector2 {...}

? 说明:Class 选择器可以通过 "." 区分,Name 选择器可以通过 "#" 区分,Type 选择器没有区分符号,因此,一个多重选择器中最多允许有一个 Type 选择器,并且必须放在第一位。

? 1)UI 搭建

? 同 3.1 1)节。

? 2)创建 Multiple 选择器

? 在 StyleSheets 窗口创建以下选择器。

  • "Label#Label1" 选择器:修改字体为斜体;
  • "VisualElement.green" 选择器:设置圆角半径 Radius 为 20 px;
  • "Label*" 选择器:设置 3px 的黄色边框。


? 3)显示效果


? 可以看到,"Label#Label1" 选择器匹配的是 Label1 元素,"VisualElement.green" 选择器匹配的是 VE2 元素,"Label*" 选择器匹配的是 Label1、Label1、Label3 元素。

4 伪类选择器(Pseudo Class)

? Pseudo 选择器是指由简单选择器和状态符连接而成,它匹配的是特定状态下的元素,官方介绍见→Pseudo-classes

  1. // 匹配满足selector且进入state状态的元素
  2. selector:state {...}

? 状态符主要以下几种。

  • :hover:光标悬浮在元素上。
  • :active:用户与元素交互。
  • :inactive:用户停止与元素交互。
  • :focus:元素获得焦点。
  • :disabled:元素进入 disabled 状态。
  • :enabled:元素进入 enabled 状态。
  • :checked:Toggle 或 RadioButton 被选中。
  • :root:元素成为根元素。

? 1)UI 搭建

? 同 3.1 1)节。

? 2)创建 Pseudo 选择器

? 在 StyleSheets 窗口创建以下选择器。

  • "#Label1:hover" 选择器:修改字体为斜体;
  • ".green:hover" 选择器:设置圆角半径 Radius 为 20 px;
  • "*:hover" 选择器:设置 3px 的黄色边框。


? 3)显示效果


? 可以看到,"#Label1:hover" 选择器匹配的是进入 hover 状态的 Label1 元素,".green:hover" 选择器匹配的是进入 hover 状态的 VE2 元素,"*:hover" 选择器匹配的是进入 hover 状态的 VE1、VE2、VE3、Label1、Label1、Label3 元素。

5 样式切换

? 1)样式选择器的添加和删除

  1. // 如果visualElement有StyleName样式, 就将其删除; 如果visualElement没有StyleName样式, 就将其添加
  2. visualElement.ToggleInClassList("StyleName"); // StyleName是样式选择器名, 不需要前面的"."

? 说明:只能添加和删除样式类选择器(以 "." 命名开头的选择器),其他选择器都是自动绑定到元素上的。

? 2)uss 样式文件替换

  1. VisualElement root = GetComponent<UIDocument>().rootVisualElement; // 根容器
  2. VisualElementStyleSheetSet styleSheetSet = root.styleSheets; // 样式集合
  3. styleSheetSet.Remove(oldStyleSheet); // 移除旧样式, oldStyleSheet是StyleSheet类型变量, 指向一个uss文件
  4. styleSheetSet.Add(newlightTheme); // 添加新样式, newStyleSheet是StyleSheet类型变量, 指向一个uss文件

6 样式应用

? 本节将实现亮主题和暗主题的切换,完整资源见→Unity3D切换样式主题

? Page.uxml

  1. <ui:UXML xmlns:ui="UnityEngine.UIElements" xmlns:uie="UnityEditor.UIElements" xsi="http://www.w3.org/2001/XMLSchema-instance" engine="UnityEngine.UIElements" editor="UnityEditor.UIElements" noNamespaceSchemaLocation="../../../UIElementsSchema/UIElements.xsd" editor-extension-mode="False">
  2. <Style src="project://database/Assets/SwitchTheme/StyleSheets/LightTheme.uss?fileID=7433441132597879392&amp;guid=b86be23b06b471b43a7ea453aed7df74&amp;type=3#LightTheme" />
  3. <ui:VisualElement name="Background" class="bgColor" style="flex-direction: row; flex-grow: 1; background-image: url(&apos;project://database/Assets/SwitchTheme/Textures/Background_Sky.png?fileID=2800000&amp;guid=49e1c76bfa6ef0546a39fd2bceb69b9a&amp;type=3#Background_Sky&apos;);">
  4. <ui:VisualElement name="Left" style="flex-grow: 0; border-right-width: 2px; border-left-color: rgb(0, 0, 0); border-right-color: rgb(0, 0, 0); border-top-color: rgb(0, 0, 0); border-bottom-color: rgb(0, 0, 0); flex-basis: 30%;">
  5. <ui:VisualElement name="Top" class="dark top" style="flex-basis: 30%; margin-bottom: 0; border-bottom-width: 2px; border-left-color: rgb(0, 0, 0); border-right-color: rgb(0, 0, 0); border-top-color: rgb(0, 0, 0); border-bottom-color: rgb(0, 0, 0);" />
  6. <ui:VisualElement name="Middle" style="flex-basis: auto; flex-grow: 1;">
  7. <ui:Label text="Label" display-tooltip-when-elided="true" class="item middleBg middle" style="flex-grow: 1; -unity-text-align: middle-center; font-size: 60px; flex-shrink: 1; margin-top: 5px; margin-bottom: 5px;" />
  8. <ui:Label text="Theme" display-tooltip-when-elided="true" name="Theme" class="item middle" style="flex-grow: 1; -unity-text-align: middle-center; font-size: 60px; flex-shrink: 1; margin-top: 5px; margin-bottom: 5px;" />
  9. <ui:RadioButtonGroup value="-1" choices="Light,Drak" name="SwitchTheme" class="middle hide" style="flex-grow: 0; font-size: 45px; -unity-text-align: middle-center; align-items: center; justify-content: center; flex-direction: column; margin-left: 0; margin-right: 0; margin-top: 5px; margin-bottom: 5px; flex-shrink: 1;" />
  10. <ui:Label text="Label" display-tooltip-when-elided="true" class="item middle" style="flex-grow: 1; -unity-text-align: middle-center; font-size: 60px; flex-shrink: 1; margin-top: 5px; margin-bottom: 5px;" />
  11. </ui:VisualElement>
  12. <ui:VisualElement name="Bottom" style="flex-basis: 25%; border-top-width: 2px; border-left-color: rgb(0, 0, 0); border-right-color: rgb(0, 0, 0); border-top-color: rgb(0, 0, 0); border-bottom-color: rgb(0, 0, 0);">
  13. <ui:Label text="Bottom" display-tooltip-when-elided="true" style="flex-shrink: 1; flex-grow: 1; font-size: 100px; -unity-text-align: middle-center;" />
  14. </ui:VisualElement>
  15. </ui:VisualElement>
  16. <ui:VisualElement name="Right" style="flex-grow: 0; flex-basis: 70%; align-items: center; justify-content: center;">
  17. <ui:Label text="Work Space" display-tooltip-when-elided="true" class="right" />
  18. </ui:VisualElement>
  19. </ui:VisualElement>
  20. </ui:UXML>

? LightTheme.uss

  1. Label {
  2. color: rgb(48, 47, 47);
  3. }
  4. RadioButton:hover {
  5. background-color: rgb(217, 217, 217);
  6. }
  7. .unity-radio-button__checkmark-background {
  8. margin-right: 10px;
  9. width: 30px;
  10. height: 30px;
  11. justify-content: center;
  12. align-items: center;
  13. border-left-width: 1px;
  14. border-right-width: 1px;
  15. border-top-width: 1px;
  16. border-bottom-width: 1px;
  17. border-top-left-radius: 20px;
  18. border-bottom-left-radius: 20px;
  19. border-top-right-radius: 20px;
  20. border-bottom-right-radius: 20px;
  21. background-color: rgb(43, 43, 43);
  22. border-left-color: rgba(248, 242, 242, 255);
  23. border-right-color: rgba(248, 242, 242, 255);
  24. border-top-color: rgba(248, 242, 242, 255);
  25. border-bottom-color: rgba(248, 242, 242, 255);
  26. padding-top: 0;
  27. }
  28. .unity-radio-button__checkmark {
  29. width: 15px;
  30. height: 15px;
  31. border-top-left-radius: 10px;
  32. border-bottom-left-radius: 10px;
  33. border-top-right-radius: 10px;
  34. border-bottom-right-radius: 10px;
  35. justify-content: center;
  36. align-items: center;
  37. background-color: rgb(217, 213, 213);
  38. }
  39. .bgColor {
  40. -unity-background-image-tint-color: rgb(255, 255, 255);
  41. }
  42. .top {
  43. background-image: url('project://database/Assets/SwitchTheme/Textures/unity_dark.png?fileID=2800000&guid=49ee81a1e2e15df46968d5d1978abc12&type=3#unity_dark');
  44. -unity-background-scale-mode: scale-to-fit;
  45. }
  46. .middle {
  47. background-color: rgba(0, 239, 255, 0.39);
  48. }
  49. .right {
  50. -unity-text-align: middle-center;
  51. -unity-font-style: bold;
  52. font-size: 200px;
  53. color: rgb(0, 168, 255);
  54. justify-content: center;
  55. align-items: center;
  56. -unity-text-outline-width: 1px;
  57. -unity-text-outline-color: rgb(255, 31, 0);
  58. text-shadow: 5px 2px 1px rgb(255, 255, 255);
  59. }
  60. .hide {
  61. display: none;
  62. }
  63. .item:hover {
  64. background-color: rgb(58, 56, 56);
  65. color: rgb(219, 216, 216);
  66. }
  67. .middle {
  68. background-color: rgba(0, 239, 255, 0.39);
  69. }

? DarkTheme.uss

  1. Label {
  2. color: rgb(212, 212, 212);
  3. }
  4. RadioButton:hover {
  5. background-color: rgb(38, 38, 38);
  6. }
  7. .unity-radio-button__checkmark-background {
  8. margin-right: 10px;
  9. width: 30px;
  10. height: 30px;
  11. justify-content: center;
  12. align-items: center;
  13. border-left-width: 1px;
  14. border-right-width: 1px;
  15. border-top-width: 1px;
  16. border-bottom-width: 1px;
  17. border-top-left-radius: 20px;
  18. border-bottom-left-radius: 20px;
  19. border-top-right-radius: 20px;
  20. border-bottom-right-radius: 20px;
  21. background-color: rgb(255, 255, 255);
  22. padding-top: 0;
  23. }
  24. .unity-radio-button__checkmark {
  25. width: 15px;
  26. height: 15px;
  27. border-top-left-radius: 10px;
  28. border-bottom-left-radius: 10px;
  29. border-top-right-radius: 10px;
  30. border-bottom-right-radius: 10px;
  31. justify-content: center;
  32. align-items: center;
  33. background-color: rgb(51, 50, 50);
  34. }
  35. .bgColor {
  36. -unity-background-image-tint-color: rgb(132, 132, 132);
  37. }
  38. .top {
  39. background-image: url('project://database/Assets/SwitchTheme/Textures/unity_light.png?fileID=2800000&guid=92a215376eed0c9498000506d15b4afe&type=3#unity_light');
  40. -unity-background-scale-mode: scale-to-fit;
  41. }
  42. .middle {
  43. background-color: rgba(46, 44, 44, 0.39);
  44. }
  45. .right {
  46. -unity-text-align: middle-center;
  47. -unity-font-style: bold;
  48. font-size: 200px;
  49. color: rgb(197, 194, 194);
  50. justify-content: center;
  51. align-items: center;
  52. -unity-text-outline-width: 1px;
  53. -unity-text-outline-color: rgb(255, 216, 0);
  54. text-shadow: 5px 2px 1px rgb(53, 52, 52);
  55. }
  56. .hide {
  57. display: none;
  58. }
  59. .item:hover {
  60. background-color: rgb(214, 211, 211);
  61. color: rgb(46, 45, 45);
  62. }

? SwitchTheme.cs

  1. using UnityEngine;
  2. using UnityEngine.UIElements;
  3. public class SwitchTheme : MonoBehaviour {
  4. private VisualElement root; // 根容器
  5. private RadioButtonGroup switchThemeElement; // 切换主题元素
  6. private VisualElementStyleSheetSet styleSheetSet; // 主题集合
  7. [SerializeField] private StyleSheet lightTheme; // 亮主题, 指向LightTheme.uss文件
  8. [SerializeField] private StyleSheet darkTheme; // 暗主题, 指向DarkTheme.uss文件
  9. private void Awake() {
  10. root = GetComponent<UIDocument>().rootVisualElement;
  11. styleSheetSet = root.styleSheets;
  12. Label themeLabel = root.Q<Label>("Theme");
  13. themeLabel.RegisterCallback<ClickEvent>(OnClick);
  14. switchThemeElement = root.Q<RadioButtonGroup>("SwitchTheme");
  15. switchThemeElement.RegisterValueChangedCallback(OnValueChanged);
  16. }
  17. private void OnClick(ClickEvent e) { // 点击回调函数
  18. switchThemeElement.ToggleInClassList("hide");
  19. }
  20. private void OnValueChanged(ChangeEvent<int> e) { // value变化回调函数
  21. if (e.newValue == 0) { // 切换为亮主题
  22. styleSheetSet.Remove(darkTheme);
  23. styleSheetSet.Add(lightTheme);
  24. } else { // 切换为暗主题
  25. styleSheetSet.Remove(lightTheme);
  26. styleSheetSet.Add(darkTheme);
  27. }
  28. }
  29. }

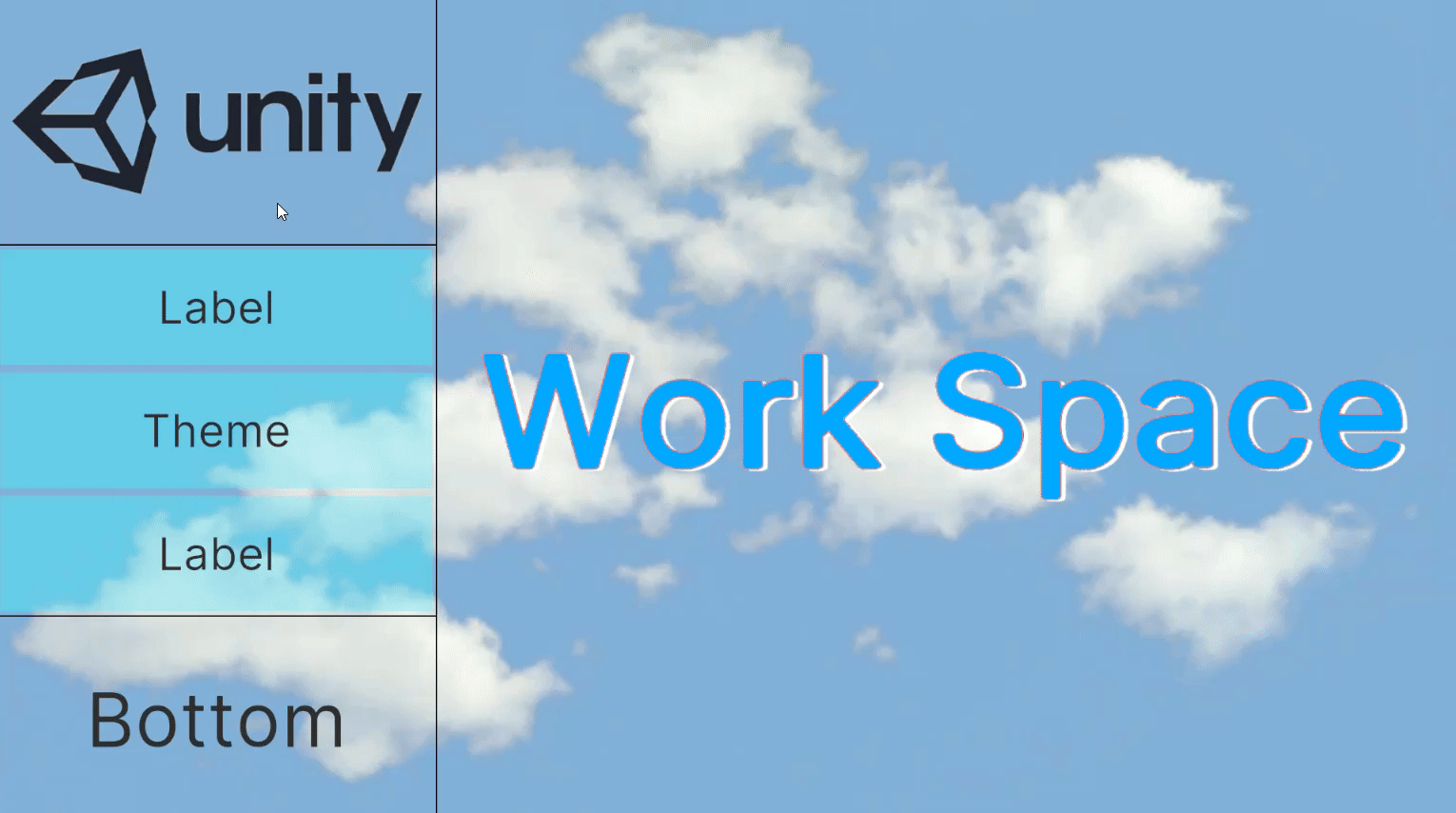

? 运行效果如下。


? 声明:本文转自【Unity3D】UI Toolkit样式选择器

原文链接:https://www.cnblogs.com/zhyan8/p/17760978.html

 友情链接:直通硅谷  点职佳  北美留学生论坛

本站QQ群:前端 618073944 | Java 606181507 | Python 626812652 | C/C++ 612253063 | 微信 634508462 | 苹果 692586424 | C#/.net 182808419 | PHP 305140648 | 运维 608723728

W3xue 的所有内容仅供测试,对任何法律问题及风险不承担任何责任。通过使用本站内容随之而来的风险与本站无关。
关于我们  |  意见建议  |  捐助我们  |  报错有奖  |  广告合作、友情链接(目前9元/月)请联系QQ:27243702 沸活量
皖ICP备17017327号-2 皖公网安备34020702000426号
